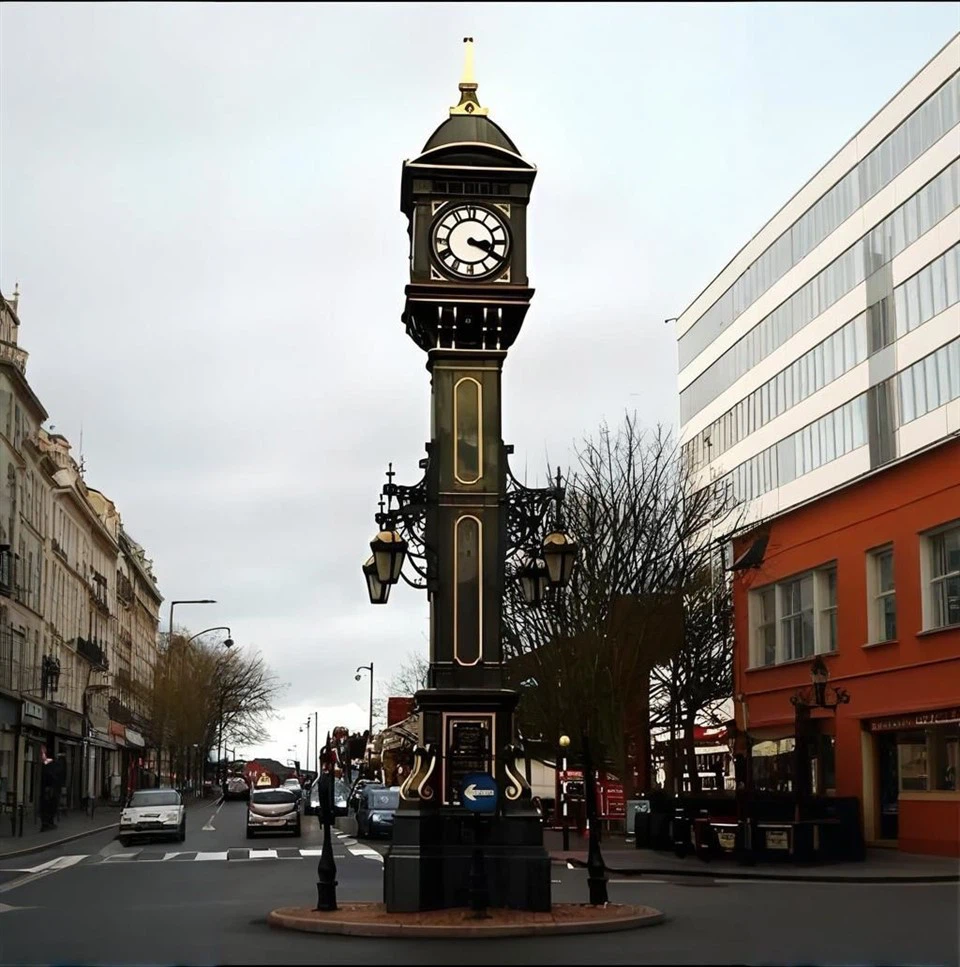

Overview
Clock is four face, high-quality PC panel,complex design galvanized steel clock minute hand, hour hand and ,skeleton behind is also made of galvanized steel tube.
Adventage
1. Master clock and master slave distributed control structure: the whole system is divided into sub clock, movement, clock, GPS antenna etc ..
2. Travel time function: automatic control and management, screen display, automatic two needle operation, master clock system exceptions closed loop control, synchronous operation remain synchronized clocks and time consistent with beijing time.
3. GPS satellite timing function: the computer center and the satellite signal receiving device is connected, will be separated from the standard time and clock time comparison, proofreading, in order to ensure the operation and standard time tower clock synchronization, travel time daily error of less than plus or minus 0.1 seconds,achieved without accumulated error.
Technical parameter
Master clock (control cabinet), GPS signal receiving unit | ||
1 | Ambient temperature | -50 ℃ ~ +70 ℃ |
2 | Working environment temperature |
-50 ℃ ~ +70 ℃ |
3 | Relative humidity | 0% to 95% (no condensation) |
4 | Timing accuracy | ± 0.01 seconds / day (no accumulation error) |
5 | interface mode | RS-485 |
6 | the number of interfaces | 2 |
7 | Power supply | AC220V ± 10% 50HZ |
8 | power consumption | ≤ 20W |
9 | Weight: | 65kg |
10 |
Volume | 450 * 500 * 820mm, the circuit design using high-precision patch electronic components |
11 | drive sub-clock number | ≤ 32 surface |
12 | power automatic memory | ≥ 10 years |
Sub clock | ||
1 | Ambient temperature | -50 ℃ ~ +70 ℃ |
2 | Operating temperature | -50 ℃ ~ +70 ℃ |
3 | Relative humidity | 0% to 95% (no condensation) |
4 | Own timing accuracy | ± 0.01 seconds / day (no accumulation error) |
5 | travel time accuracy | 0.1ms |
6 | movement of the drive current | an average of 0.6A |
7 | torque | greater than 120 Newton meters |
8 | power consumption | ≤ 25W |
Drive mode | constant flow chopper refinement | |
Wind resistance | ≥ 12 | |
Life of the machine | 30 years | |
